Identification Tree and Dataset creation

Once your Result Files have been imported, you can use them to create a new Identification Dataset. To create it from result files, you can:

  • right-click the Identification Trees node in the project tree, then select New Dataset or
  • double-click the Identification Trees node to show the identifications grid. It is meant to list all your datasets, and the results of their validation if you've run them. For now, click on the New Dataset button from the toolbar.

Note that you can also create an empty dataset to further assemble complex structures using drag and drop in the project tree. However, this way is not favoured.

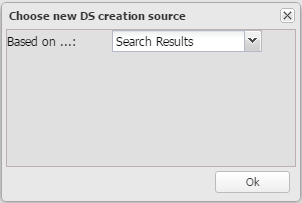

You should now see a window asking to choose a source of data for your new Dataset.
The only option available yet is Result Set: it allows you to build a new dataset from the Result Files you have imported. Click OK to continue.

Create a simple dataset (single group)

Dataset properties

In the right panel, two text fields allow you to enter a name and description (optional) for your dataset.

By default, the result sets will be named in the tree using the result file name. You can change that with the Name child results using box. The possibilities are: peaklist file name, raw file identifier, result file name, sample, search title.

Files selection

To add one or many files to your selection, select them in the grid (you can use the Ctrl and the Shift keys to make a multiple selection), then click on Add to dataset (top-right of the panel). You can also double click on one file to quickly add it to the selection.

To remove any file from the selection, just select them and click on Remove selected Items.

Created dataset

The creation of your identification dataset happens as follows:

  • An “Aggregation” Dataset Node is created. It takes the name that you provided during the creation.
  • One “Identification” Dataset Node is created for each one of the Result Files you have selected. They take the name of the Result File.

Once your Identification Dataset has been created, you can see it on the tree, in the left side of the window. The grey icon let you known that it is not yet validated.

The panel of the Aggregation Node shows a list of your Identification fractions (corresponding to each imported file) and, after the validation process, it will display the Merged Result Summary infos.
