Filter Tables

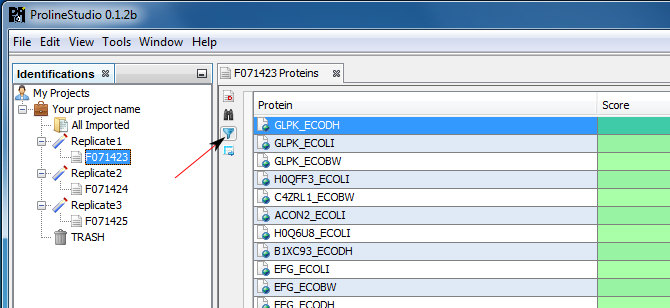

You can filter data displayed in the different tables thanks to the filter button at the top right corner of a table.

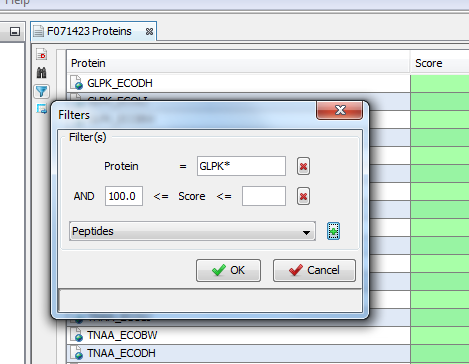

When you have clicked on the filter button, a dialog is opened. In this dialog you can select the columns of the table you want to filter thanks to the “+” button.

In the following example, we have added two filters:

- one on the Protein Name column (available wildcards are * to replace multiple characters and ? to replace one character)

- one on the Score Column (Score must be at least 100 and there is no maximum specified).

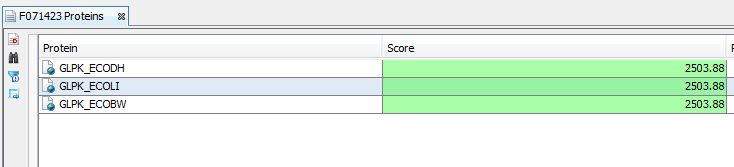

The result is all the proteins starting with GLPK (correspond to GLPK*) and with a score greater or equal than 100.

Note: for String filters, you can use the following wildcards: * matches zero or more characters, ? matches one character.
